The Best-Selling ACE Group Containerized Portable Asphalt Mixing Plant CFB120 120t/h Features Accurate Weighing Quick Installation And Is Suitable For Various Asphalt Mixes Available In A Full Range Of Capacities And Models It's The Ideal Choice For
Product Feature
Product Introduction

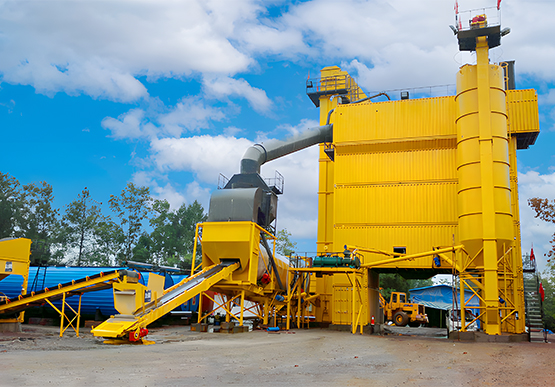

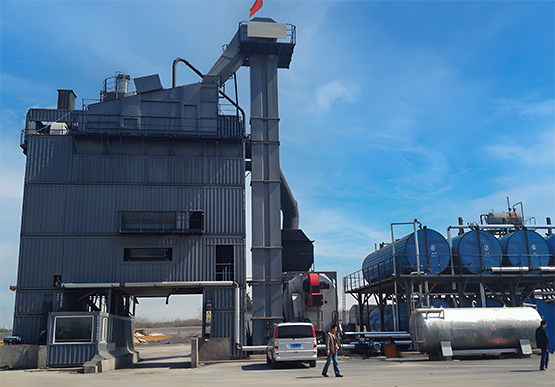

CFB series Containerized Asphalt Mixing Plant is a portable batching plant with a modular design, featuring in flexibility, quick installation, and accurate weighing. It can effectively mix various asphalt mixtures with cold aggregate feeding system, drying system, screening and mixing system, dust collecting system, and control system. The containerized design makes it easy to use on different sites. This Mixing Plant offers different models to meet diverse production capacity requirements.
The CFB series Containerized Asphalt Mixing Plant is a neat and compact mixing plant, which facilitates quick relocation and reassembly can be completed within hours. No foundation construction is required. It is the ideal choice for medium and high-end long-distance road construction projects and is currently popular in markets.
Main Features
1. Foundation-Free
Containerized design, CFB series containerized batching plant do not need foundation, featuring in flexibility, quick installation and disassembly, and accurate weighing.
2. BV Classification Society Certification
Certified by BV Classification Society, ensuring safety and reliability.
3. German Screening Technology
The vibration screening technology with a 110-year history originating from Germany is characterized by efficient screening, low energy consumption, and durability.
4. Dust Emission ＜20mg/Nm³
Dual-stage dust collector, dust emission in exhaust ＜20mg/Nm³, environmentally-friendly.
5. Safety Interlock Device
The built-in staircase and safety interlock device provide excellent protection for the personal safety of maintenance operators.
6. High Re-sale Value
Internationally renowned brand components within the container minimize wear and tear and ensure a long service life, maintaining a high resale value.
Product Parameter
Model | CFB120 |
Production capacity(t/h) | 120 |
Total Power(kW) | 305 |
Cold Aggregate Feeders (m³) | 4*9 |
Drying Drum (mm) | 7500 x 1600 |
Hot Aggregate Storage Bins (m³) | 22 |
Hot Aggregate Weighing Sensor(kg) | 1200 |
Filler Weighing Sensor(kg) | 250 |
Bitumen Weighing Sensor(kg) | 200 |
Mixer Capacity (kg) | 1500 |
Bag-house Dust Collector Filtering Area (m²) | 473 |
Filler Silo (m³) | 30 |
